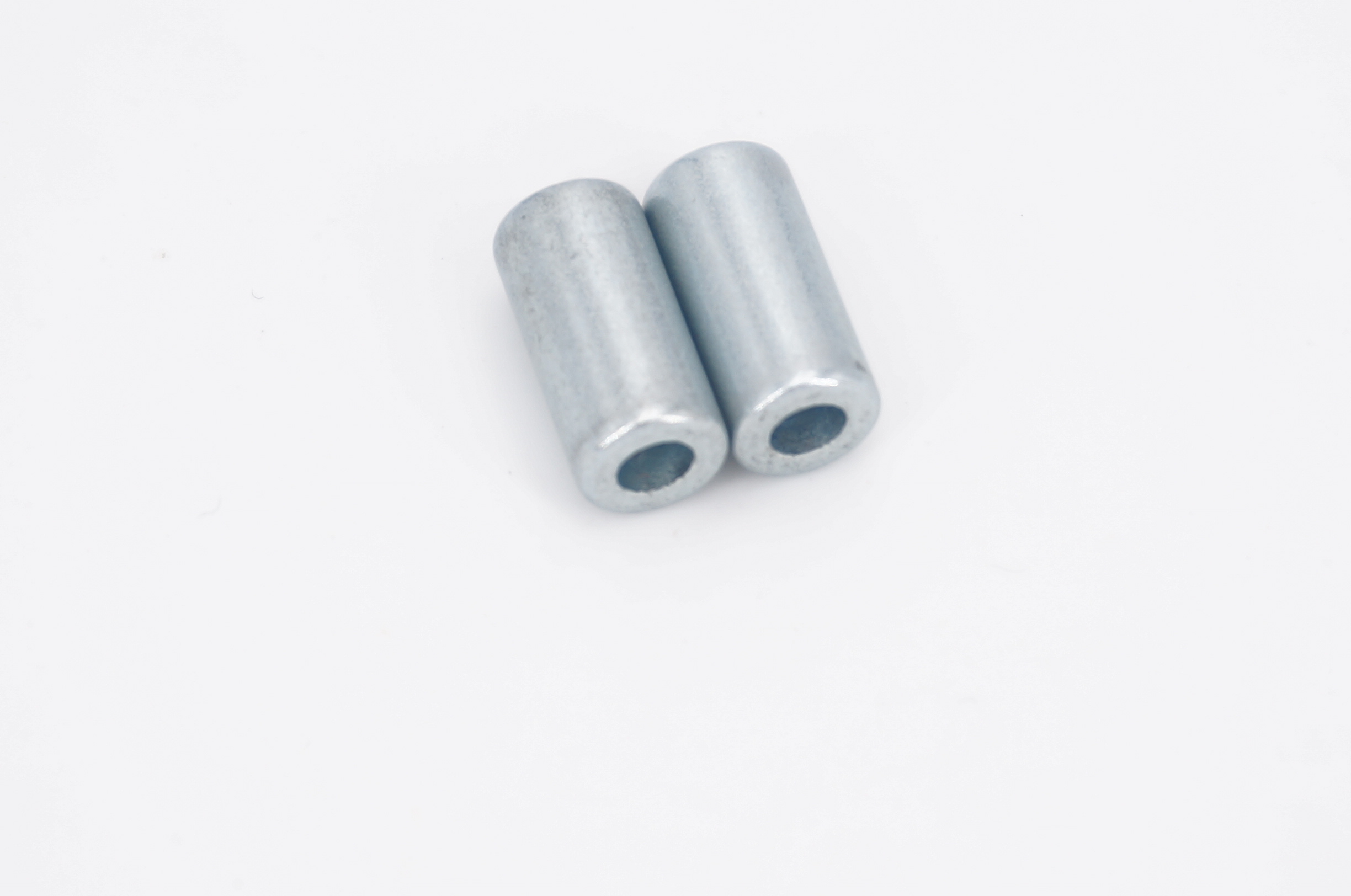

Neodymium magnet Tolerance /- 0.02 Mm Magnetic Material high speed motor strong magnet
Product Description:
One of the key features of the NdFeB Magnet is its strength. It is known for being one of the strongest magnets available in the market today. This makes it an ideal choice for applications that require a strong magnetic force.
Another advantage of the NdFeB Magnet is its versatility. It can be coated with different materials such as nickel, epoxy, Zn, and Ni-cu-ni to suit different applications. The coating helps to protect the magnet from corrosion and wear and tear.
The NdFeB Magnet finds its use in a variety of applications. It is commonly used in wind turbines to generate electricity. The magnet's strong magnetic force helps to produce more power than traditional turbines. NdFeB Magnets are also used in high speed motor. The magnets provide a strong magnetic and have tensile strength that resists centrifugal forces of no less than 130,000 RPM.
Overall, the NdFeB Magnet is a reliable and high-quality product that is suitable for various industrial applications. Its strength, versatility, and durability make it a popular choice among manufacturers. Whether you need a custom magnet, big magnet, or shape magnet, the NdFeB Magnet is a great option to consider.
| Process: | Sintering |
| Grade Available: | N52 Neodymium Magnet / 38SH Magnet |
| Tensile Strength: | Resists Centrifugal Forces Of No Less Than 130,000 RPM |
| Type of Magnet: | Neodymium Rare Earth Magnet |
| Max Working Temp: | 120ºC |
| Magnetization Methods: | Radial Multipolar |
| Coating: | Nickel Zn |
| Application: | Wind Turbine / High speed motor |
| Tolerance: | +/- 0.02 Mm |
| Raw Material: | NdFeB Rare Earth Materials / Magnetic Material |
The NdFeB Magnet is suitable for a variety of scenarios, including industrial, commercial, and personal use. Due to its high strength and resistance to demagnetization, it is frequently used in motors, generators, and magnetic bearings. It is also used in magnetic resonance imaging (MRI) machines and other medical devices. Because of its small size and powerful magnetic field, it is commonly used in consumer electronics such as headphones, speakers, and hard disk drives.
The JN-ND-1 NdFeB Magnet is available in a variety of sizes and
shapes, including custom magnets, big magnets, and shaped magnets.
It is also available in different grades, including N52 Neodymium
Magnet and N42 Magnet,38SH or others. The coating options for this
magnet include Nickel, Zn, and Ni-cu-ni, which protects the magnet
from corrosion and extends its lifespan. The sintering process used
in manufacturing this magnet ensures its durability and
reliability.
This product is supplied in different packaging options, including
By Sea Pallet, By Air Carton, and By Express Packaging, making it
easy to transport and store. The delivery time for this product is
21 days, and the payment terms are flexible, including L/C and T/T.
With a supply ability of 1 000K PCS/Month, the JN-ND-1 NdFeB Magnet
is a reliable and cost-effective option for a wide range of
applications.
Please refer to the following table for the specifications of the neodymium magnet series we offer:
| Magnetic Properties | ||||||||||
| Grade | Remanence | Intrinsic Coercivity | Max Magnetic Energy Product | Temperature Coefficient | Max Working Temperture | Density | ||||
| Br | Hcj | (BH)max | α Br | β Hcj | Tw | ρ | ||||
| T | kGs | kA/m | kOe | KJ/m3 | MGOe | %/℃ | %/℃ | ℃ | g/cm2 | |
| N55 | ≥1.45 | ≥14.5 | ≥955 | ≥12 | 406-437 | 51-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N54 | ≥1.44 | ≥14.4 | ≥955 | ≥12 | 398-437 | 50-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N52 | 1.42-1.44 | 14.2-14.4 | ≥955 | ≥12 | 390-422 | 49-53 | -0.12 | -0.8 | 80 | ≥7.5 |
| N50 | 1.4-1.42 | 14-14.2 | ≥955 | ≥12 | 374-406 | 47-51 | -0.12 | -0.8 | 80 | ≥7.5 |
| N48 | 1.37-1.4 | 13.7-14 | ≥955 | ≥12 | 366-390 | 46-49 | -0.12 | -0.8 | 80 | ≥7.5 |
| N45 | 1.32-1.37 | 13.2-13.7 | ≥955 | ≥12 | 342-366 | 43-46 | -0.12 | -0.8 | 80 | ≥7.5 |
| 54M | ≥1.44 | ≥14.4 | ≥1114 | ≥14 | 398-422 | 50-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 52M | 1.42-1.44 | 14.2-14.4 | ≥1114 | ≥14 | 390-422 | 49-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 50M | 1.4-1.42 | 14-14.2 | ≥1114 | ≥14 | 374-406 | 47-51 | -0.12 | -0.8 | 100 | ≥7.5 |
| 48M | 1.37-1.4 | 13.7-14 | ≥1114 | ≥14 | 366-390 | 46-49 | -0.12 | -0.8 | 100 | ≥7.5 |
| 45M | 1.32-1.37 | 13.2-13.7 | ≥1114 | ≥14 | 342-366 | 43-46 | -0.12 | -0.8 | 100 | ≥7.5 |
| 42M | 1.28-1.32 | 12.8-13.2 | ≥1114 | ≥14 | 318-342 | 40-43 | -0.12 | -0.8 | 100 | ≥7.5 |
| 54H | ≥1.44 | ≥14.4 | ≥1353 | ≥17 | 398-422 | 50-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52H | 1.42-1.44 | 14.2-14.4 | ≥1353 | ≥17 | 390-422 | 49-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 50H | 1.4-1.42 | 14-14.2 | ≥1353 | ≥17 | 374-406 | 47-51 | -0.12 | -0.7 | 120 | ≥7.5 |
| 48H | 1.37-1.4 | 13.7-14 | ≥1353 | ≥17 | 366-390 | 46-49 | -0.12 | -0.7 | 120 | ≥7.5 |
| 45H | 1.32-1.37 | 13.2-13.7 | ≥1353 | ≥17 | 342-366 | 43-46 | -0.12 | -0.7 | 120 | ≥7.5 |
| 42H | 1.28-1.32 | 12.8-13.2 | ≥1353 | ≥17 | 318-342 | 40-43 | -0.12 | -0.7 | 120 | ≥7.5 |
| 40H | 1.26-1.28 | 12.6-12.8 | ≥1353 | ≥17 | 302-326 | 38-41 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52SH | 1.42-1.44 | 14.2-14.4 | ≥1592 | ≥20 | 390-422 | 49-53 | -0.12 | -0.6 | 150 | ≥7.5 |
| 50SH | 1.4-1.42 | 14-14.2 | ≥1592 | ≥20 | 374-406 | 47-51 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48SH | 1.37-1.4 | 13.7-14 | ≥1592 | ≥20 | 366-390 | 46-49 | -0.12 | -0.6 | 150 | ≥7.5 |
| 45SH | 1.32-1.37 | 13.2-13.7 | ≥1592 | ≥20 | 342-366 | 43-46 | -0.12 | -0.6 | 150 | ≥7.5 |
| 42SH | 1.28-1.32 | 12.8-13.2 | ≥1592 | ≥20 | 318-342 | 40-43 | -0.12 | -0.6 | 150 | ≥7.5 |
| 40SH | 1.26-1.28 | 12.6-12.8 | ≥1592 | ≥20 | 302-326 | 38-41 | -0.12 | -0.6 | 150 | ≥7.5 |
| 38SH | 1.22-1.26 | 12.2-12.6 | ≥1592 | ≥20 | 287-310 | 36-39 | -0.12 | -0.6 | 150 | ≥7.5 |
| 35SH | 1.17-1.22 | 11.7-12.2 | ≥1592 | ≥20 | 263-287 | 33-36 | -0.12 | -0.6 | 150 | ≥7.5 |
| 33SH | 1.13-1.17 | 11.3-11.7 | ≥1592 | ≥20 | 247-271 | 31-34 | -0.12 | -0.6 | 150 | ≥7.5 |
| 30SH | 1.08-1.13 | 10.8-11.3 | ≥1592 | ≥20 | 223-254 | 28-32 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48UH | 1.36-1.4 | 13.6-14 | ≥1990 | ≥25 | 366-390 | 46-49 | -0.12 | -0.6 | 180 | ≥7.5 |
| 45UH | 1.32-1.37 | 13.2-13.7 | ≥1990 | ≥25 | 342-366 | 43-46 | -0.12 | -0.6 | 180 | ≥7.5 |
| 42UH | 1.28-1.32 | 12.8-13.2 | ≥1990 | ≥25 | 318-342 | 40-43 | -0.12 | -0.6 | 180 | ≥7.5 |
| 40UH | 1.26-1.28 | 12.6-12.8 | ≥1990 | ≥25 | 302-326 | 38-41 | -0.12 | -0.6 | 180 | ≥7.5 |
| 38UH | 1.22-1.26 | 12.2-12.6 | ≥1990 | ≥25 | 287-310 | 36-39 | -0.12 | -0.6 | 180 | ≥7.5 |
| 35UH | 1.17-1.22 | 11.7-12.2 | ≥1990 | ≥25 | 263-287 | 33-36 | -0.12 | -0.6 | 180 | ≥7.5 |
| 33UH | 1.13-1.17 | 11.3-11.7 | ≥1990 | ≥25 | 247-271 | 31-34 | -0.12 | -0.6 | 180 | ≥7.5 |
| 30UH | 1.08-1.13 | 10.8-11.3 | ≥1990 | ≥25 | 223-255 | 28-32 | -0.12 | -0.51 | 180 | ≥7.5 |
| 28UH | 1.02-1.08 | 10.2-10.8 | ≥1990 | ≥25 | 207-231 | 26-29 | -0.12 | -0.51 | 180 | ≥7.5 |
| 42EH | 1.28-1.32 | 12.8-13.2 | ≥2388 | ≥30 | 318-342 | 40-43 | -0.12 | -0.5 | 200 | ≥7.5 |
| 40EH | 1.25-1.28 | 12.5-12.8 | ≥2388 | ≥30 | 302-326 | 38-41 | -0.12 | -0.5 | 200 | ≥7.5 |
| 38EH | 1.22-1.26 | 12.2-12.6 | ≥2388 | ≥30 | 287-310 | 36-39 | -0.12 | -0.5 | 200 | ≥7.5 |
| 35EH | 1.17-1.22 | 11.7-12.2 | ≥2388 | ≥30 | 263-287 | 33-36 | -0.12 | -0.5 | 200 | ≥7.5 |
| 33EH | 1.13-1.17 | 11.3-11.7 | ≥2388 | ≥30 | 247-271 | 31-34 | -0.12 | -0.5 | 200 | ≥7.5 |
| 30EH | 1.08-1.13 | 10.8-11.3 | ≥2388 | ≥30 | 223-255 | 28-32 | -0.12 | -0.51 | 200 | ≥7.5 |
| 28EH | 1.02-1.08 | 10.2-10.8 | ≥2388 | ≥30 | 207-231 | 26-29 | -0.12 | -0.51 | 200 | ≥7.5 |
| 40AH | 1.25-1.28 | 12.5-12.8 | ≥2786 | ≥35 | 302-326 | 38-41 | -0.12 | -0.51 | 220 | ≥7.5 |
| 38AH | 1.22-1.26 | 12.2-12.6 | ≥2786 | ≥35 | 287-310 | 36-39 | -0.12 | -0.51 | 220 | ≥7.5 |
| 35AH | 1.17-1.22 | 11.7-12.2 | ≥2786 | ≥35 | 263-287 | 33-36 | -0.12 | -0.51 | 220 | ≥7.5 |
| 33AH | 1.13-1.17 | 11.3-11.7 | ≥2786 | ≥35 | 247-271 | 31-34 | -0.12 | -0.51 | 220 | ≥7.5 |
| 30AH | 1.08-1.13 | 10.8-11.3 | ≥2786 | ≥35 | 223-255 | 28-32 | -0.12 | -0.51 | 220 | ≥7.5 |
| 28AH | 1.02-1.08 | 10.2-10.8 | ≥2786 | ≥35 | 199-231 | 25-29 | -0.12 | -0.51 | 220 | ≥7.5 |
|
