Tile N42 NdFeB Magnet Rare Earth Magnet Material For Customized

Ask Lasest Price
Brand Name :	JN
Model Number :	JN-ND-1
Certification :	ISO9001
Price :	Negotiable
Delivery Time :	21 Days
Payment Terms :	L/C,T/T
Supply Ability :	1 000K PCS/Month

Add to Cart

Product Details
Company Profile

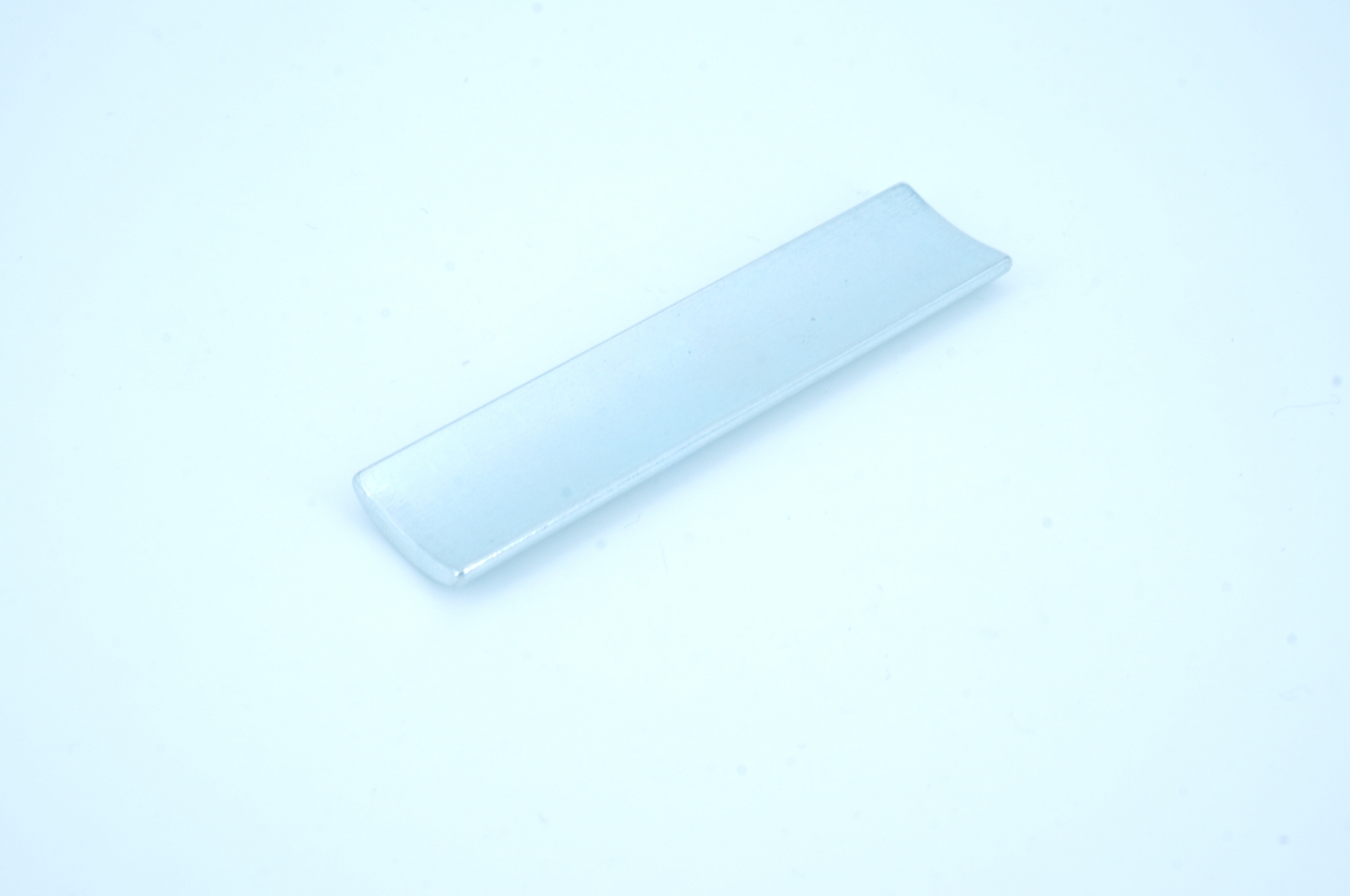

Tile N42 NdFeB Magnet Rare Earth Magnet Material For Customized

Tile N42 Max Working Temp 230ºC NdFeB Magnet for Customized Temperature Applications

Product Description:

NdFeB Magnet - The Super Strong Magnet You Need

Neodymium Permanent Magnet, also known as Neodymium Iron Boron Magnet, is one of the most powerful and versatile magnets available today. Among its many variations, the NdFeB Magnet stands out with its exceptional strength and durability, making it the top choice for various industrial and consumer applications.

Size: Custom

We understand that every project has unique requirements, and that's why our NdFeB Magnet is available in custom sizes to meet your specific needs. Whether you need a tiny magnet for a delicate electronic device or a large one for a heavy-duty machinery, we've got you covered.

Grade Available: N35-N52

The NdFeB Magnet comes in a range of grades, with N35 to N52 being the most commonly used. The higher the grade, the stronger the magnet. So whether you need a strong magnet for holding heavy objects or a weaker one for more delicate tasks, we have the right grade for you.

Working Temperature: 80-230 Centigrade

The NdFeB Magnet is designed to withstand high temperatures, making it suitable for use in extreme environments. With a working temperature range of 80-230 Centigrade, our magnet can perform reliably even in the most demanding conditions.

Process: Sintering

The production process of NdFeB Magnet involves sintering, which is a process of compacting and forming a solid mass of material using pressure and heat. This process ensures that our magnet has a high density and excellent magnetic properties.

Tolerance: +/- 0.05 Mm

Precision is crucial when it comes to magnets, and our NdFeB Magnet is manufactured with a tight tolerance of +/- 0.05 mm. This ensures that our magnet has consistent dimensions and performs at its best in various applications.

Applications and Scenarios

NdFeB Magnet has a wide range of applications in different industries. Some common examples include:

Magnetic Separators: NdFeB Magnet is used in magnetic separators, which are used to separate and remove ferrous materials from non-magnetic substances. They are commonly used in industries such as mining, recycling, and food processing.
Magnetic Lifters: NdFeB Magnet is also used in magnetic lifters, which are used to lift and move heavy objects in industries like construction, manufacturing, and transportation.
Magnetic Chucks: NdFeB Magnet is used in magnetic chucks, which are used to hold and secure workpieces during machining operations. They are commonly used in metalworking and woodworking industries.
Electric Motors and Generators: NdFeB Magnet is an essential component in electric motors and generators, which are used in various industries to convert electrical energy into mechanical energy.
Speakers and Headphones: NdFeB Magnet is used in the speakers and headphones of electronic devices, providing clear and high-quality sound.
Medical Equipment: NdFeB Magnet is used in medical equipment such as MRI machines, providing a strong magnetic field for imaging and diagnosis purposes.

Conclusion

NdFeB Magnet, with its super strong magnetic force and high durability, is an essential magnet in various industrial applications. Its versatility and wide range of uses make it a valuable material in many industries. As a leading manufacturer of NdFeB Magnet, JN is committed to providing high-quality products and customized solutions to meet the specific needs of our customers. Contact us today to learn more about our NdFeB Magnet and how it can benefit your business.

Magnetic Properties
Grade	Remanence		Intrinsic Coercivity		Max Magnetic Energy Product		Temperature Coefficient		Max Working Temperture	Density
	Br		Hcj		(BH)max		α Br	β Hcj	Tw	ρ
	T	kGs	kA/m	kOe	KJ/m³	MGOe	%/℃	%/℃	℃	g/cm³
N55	≥1.45	≥14.5	≥955	≥12	406-437	51-55	-0.12	-0.8	80	≥7.5
N54	≥1.44	≥14.4	≥955	≥12	398-437	50-55	-0.12	-0.8	80	≥7.5
N52	1.42-1.44	14.2-14.4	≥955	≥12	390-422	49-53	-0.12	-0.8	80	≥7.5
N50	1.4-1.42	14-14.2	≥955	≥12	374-406	47-51	-0.12	-0.8	80	≥7.5
N48	1.37-1.4	13.7-14	≥955	≥12	366-390	46-49	-0.12	-0.8	80	≥7.5
N45	1.32-1.37	13.2-13.7	≥955	≥12	342-366	43-46	-0.12	-0.8	80	≥7.5
54M	≥1.44	≥14.4	≥1114	≥14	398-422	50-53	-0.12	-0.8	100	≥7.5
52M	1.42-1.44	14.2-14.4	≥1114	≥14	390-422	49-53	-0.12	-0.8	100	≥7.5
50M	1.4-1.42	14-14.2	≥1114	≥14	374-406	47-51	-0.12	-0.8	100	≥7.5
48M	1.37-1.4	13.7-14	≥1114	≥14	366-390	46-49	-0.12	-0.8	100	≥7.5
45M	1.32-1.37	13.2-13.7	≥1114	≥14	342-366	43-46	-0.12	-0.8	100	≥7.5
42M	1.28-1.32	12.8-13.2	≥1114	≥14	318-342	40-43	-0.12	-0.8	100	≥7.5
54H	≥1.44	≥14.4	≥1353	≥17	398-422	50-53	-0.12	-0.7	120	≥7.5
52H	1.42-1.44	14.2-14.4	≥1353	≥17	390-422	49-53	-0.12	-0.7	120	≥7.5
50H	1.4-1.42	14-14.2	≥1353	≥17	374-406	47-51	-0.12	-0.7	120	≥7.5
48H	1.37-1.4	13.7-14	≥1353	≥17	366-390	46-49	-0.12	-0.7	120	≥7.5
45H	1.32-1.37	13.2-13.7	≥1353	≥17	342-366	43-46	-0.12	-0.7	120	≥7.5
42H	1.28-1.32	12.8-13.2	≥1353	≥17	318-342	40-43	-0.12	-0.7	120	≥7.5
40H	1.26-1.28	12.6-12.8	≥1353	≥17	302-326	38-41	-0.12	-0.7	120	≥7.5
52SH	1.42-1.44	14.2-14.4	≥1592	≥20	390-422	49-53	-0.12	-0.6	150	≥7.5
50SH	1.4-1.42	14-14.2	≥1592	≥20	374-406	47-51	-0.12	-0.6	150	≥7.5
48SH	1.37-1.4	13.7-14	≥1592	≥20	366-390	46-49	-0.12	-0.6	150	≥7.5
45SH	1.32-1.37	13.2-13.7	≥1592	≥20	342-366	43-46	-0.12	-0.6	150	≥7.5
42SH	1.28-1.32	12.8-13.2	≥1592	≥20	318-342	40-43	-0.12	-0.6	150	≥7.5
40SH	1.26-1.28	12.6-12.8	≥1592	≥20	302-326	38-41	-0.12	-0.6	150	≥7.5
38SH	1.22-1.26	12.2-12.6	≥1592	≥20	287-310	36-39	-0.12	-0.6	150	≥7.5
35SH	1.17-1.22	11.7-12.2	≥1592	≥20	263-287	33-36	-0.12	-0.6	150	≥7.5
33SH	1.13-1.17	11.3-11.7	≥1592	≥20	247-271	31-34	-0.12	-0.6	150	≥7.5
30SH	1.08-1.13	10.8-11.3	≥1592	≥20	223-254	28-32	-0.12	-0.6	150	≥7.5
48UH	1.36-1.4	13.6-14	≥1990	≥25	366-390	46-49	-0.12	-0.6	180	≥7.5
45UH	1.32-1.37	13.2-13.7	≥1990	≥25	342-366	43-46	-0.12	-0.6	180	≥7.5
42UH	1.28-1.32	12.8-13.2	≥1990	≥25	318-342	40-43	-0.12	-0.6	180	≥7.5
40UH	1.26-1.28	12.6-12.8	≥1990	≥25	302-326	38-41	-0.12	-0.6	180	≥7.5
38UH	1.22-1.26	12.2-12.6	≥1990	≥25	287-310	36-39	-0.12	-0.6	180	≥7.5
35UH	1.17-1.22	11.7-12.2	≥1990	≥25	263-287	33-36	-0.12	-0.6	180	≥7.5
33UH	1.13-1.17	11.3-11.7	≥1990	≥25	247-271	31-34	-0.12	-0.6	180	≥7.5
30UH	1.08-1.13	10.8-11.3	≥1990	≥25	223-255	28-32	-0.12	-0.51	180	≥7.5
28UH	1.02-1.08	10.2-10.8	≥1990	≥25	207-231	26-29	-0.12	-0.51	180	≥7.5
42EH	1.28-1.32	12.8-13.2	≥2388	≥30	318-342	40-43	-0.12	-0.5	200	≥7.5
40EH	1.25-1.28	12.5-12.8	≥2388	≥30	302-326	38-41	-0.12	-0.5	200	≥7.5
38EH	1.22-1.26	12.2-12.6	≥2388	≥30	287-310	36-39	-0.12	-0.5	200	≥7.5
35EH	1.17-1.22	11.7-12.2	≥2388	≥30	263-287	33-36	-0.12	-0.5	200	≥7.5
33EH	1.13-1.17	11.3-11.7	≥2388	≥30	247-271	31-34	-0.12	-0.5	200	≥7.5
30EH	1.08-1.13	10.8-11.3	≥2388	≥30	223-255	28-32	-0.12	-0.51	200	≥7.5
28EH	1.02-1.08	10.2-10.8	≥2388	≥30	207-231	26-29	-0.12	-0.51	200	≥7.5
40AH	1.25-1.28	12.5-12.8	≥2786	≥35	302-326	38-41	-0.12	-0.51	220	≥7.5
38AH	1.22-1.26	12.2-12.6	≥2786	≥35	287-310	36-39	-0.12	-0.51	220	≥7.5
35AH	1.17-1.22	11.7-12.2	≥2786	≥35	263-287	33-36	-0.12	-0.51	220	≥7.5
33AH	1.13-1.17	11.3-11.7	≥2786	≥35	247-271	31-34	-0.12	-0.51	220	≥7.5
30AH	1.08-1.13	10.8-11.3	≥2786	≥35	223-255	28-32	-0.12	-0.51	220	≥7.5
28AH	1.02-1.08	10.2-10.8	≥2786	≥35	199-231	25-29	-0.12	-0.51	220	≥7.5
