Permanent Magnet Low Voltage Synchronous Motor(PMSM) HCP series(1.1~11KW)

Description

The factory is a strategic partner of Beijing Institute of Precision Electromechanical Control Equipment under China Aerospace Science and Technology Corporation.

The factory has been combined with the production, education and research of China Aerospace, the Institute of Electrical Engineering of the Chinese Academy of Sciences and other related units, and fully relies on the strong equipment research and development capabilities of China Aerospace to ensure the excellent performance of the products, stable and reliable quality.

1. Material

The stator winding of this series of products adopts high-quality pure copper coil, and the rotor adopts sintered NdFeB rare earth permanent magnet, high standard material selection, and long service life of the product;

2. Design

ultra-light, ultra-thin, compact motor structure design, high power density (24nm/kg, 5.8kw/kg), small size, higher efficiency and wider economic operating range, with significant energy-saving effect;

3. Process

The stator skeleton adopts PEEK material with high strength and high insulation characteristics, the epoxy material filling and potting, which adopts high strength and high thermal conductivity, fills and seals to solve the fixing and cooling needs, the iron core adopts high magnetic permeability and low loss amorphous alloy material, the winding adopts spiral centralized molding, multi-stage winding, SMC material and permanent magnet fixation, and adopts magnetic pole shoe process and demagnetization protection technology to ensure the stability and reliability of the product.

Performance

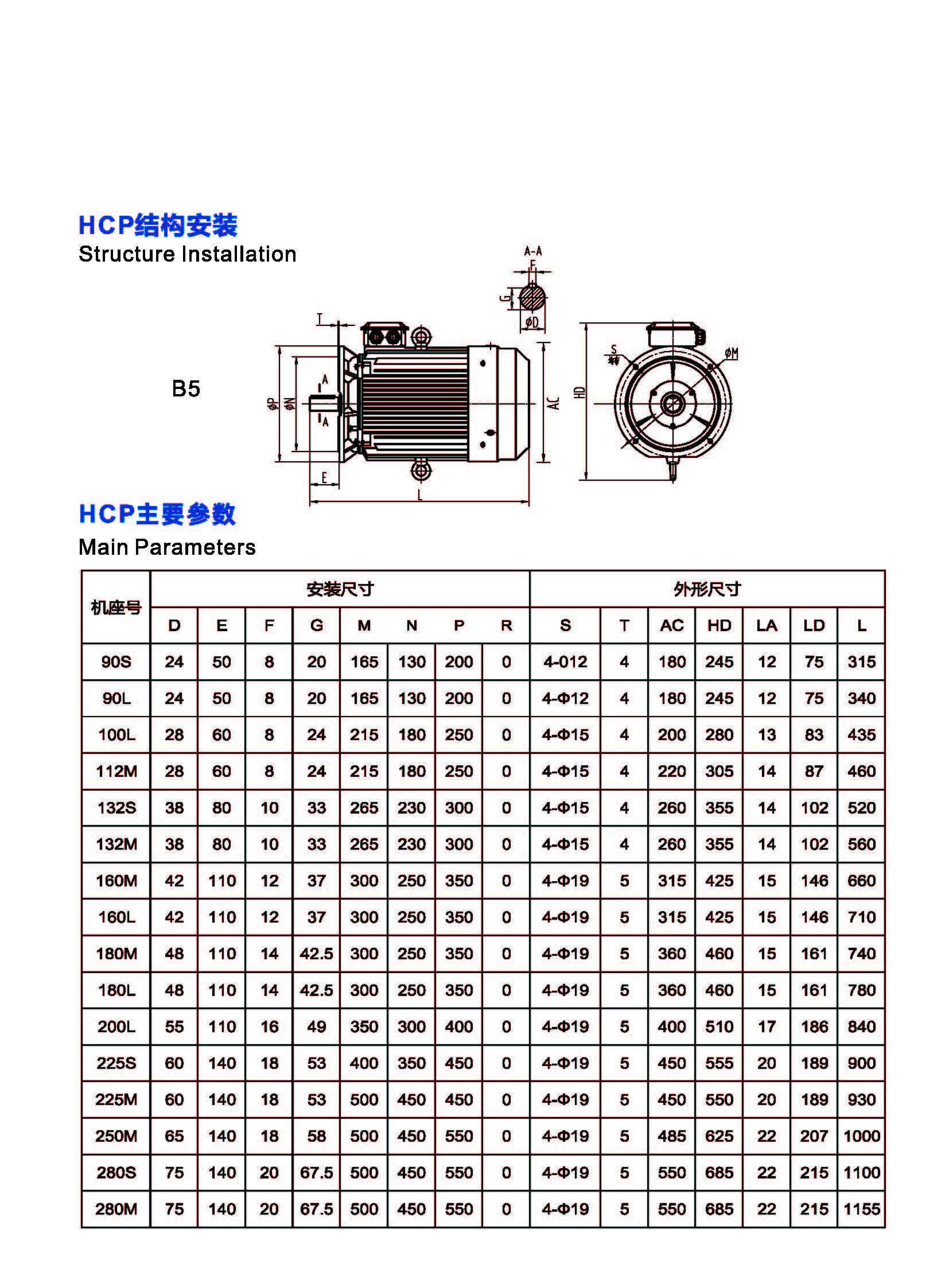

Please refer to the following table for the specific parameters of this series of products:

China Jiangsu Jiuneng Electromechanical Technology Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing and sales of high-performance magnetic materials and related products.

The company's main products are sintered NdFeB magnets, customized processing of motor magnets, tile magnets, double counterbore, can mass produce N35-N55, 35H-52H, 35M-55M, 28EH-42EH, 30UH-48UH, 33SH-52SH, etc., the products are widely used in aerospace, consumer electronics (CD, VCD, Apple, Huawei mobile phones in zoom motors, vibration motors, etc.), motors, new energy electric vehicles, wind power generation, etc. At present, there are sintering and deep processing production bases in Hai'an, Jiangsu Province and Ningbo, Zhejiang Province, respectively, which can support customized production according to customer needs.
Our products are exported to all parts of the country and exported to Japan, South Korea, Australia, New Zealand, Pakistan, Vietnam, Indonesia, Singapore, Malaysia and other countries and regions, and have been recognized and affirmed by customers at home and abroad, and have achieved a good reputation in the industry with strong economic strength.
