Jiangsu Jiuneng Electromechanical Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | JN |
| Model Number : | JN-ND-1 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Delivery Time : | 21 Days |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 1 000K PCS/Month |

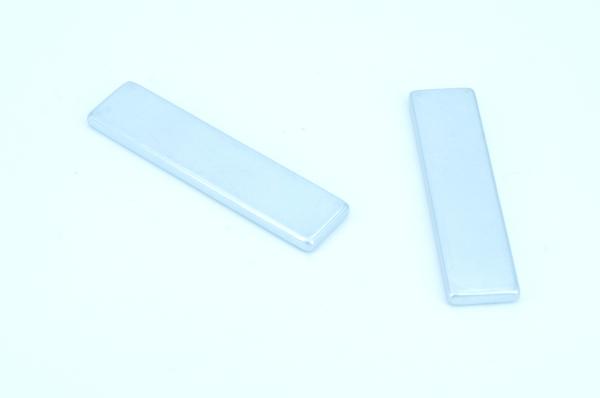

| Product Name | NdFeB Magnet |
|---|---|
| Grand Available | N35-N52 |
| Type of Magnet | NdFeB Magnets |
| Coating | Nickel Epoxy Zn Ni |
| Application | Traction Motor, Automotive EPS Motor, Air Conditioner,lifting magnet |
| Max Working Temperature | 230ºC |
| Size | Custom |
| Tolerance | +/- 0.05 mm |
| Working Temperature | 80-230 Centigrade |
| Raw Material | NdFeB Rare Earth Materials |
| Process | Sintering |
| Key Features | Neodymium Permanent Magnet, Neodymium Iron Boron Magnet, NdFeB Permanent Magnet, High Remanence Magnet |
Our super strong magnet is highly sought after for its exceptional strength and durability. With our customized service, you can tailor the specifications of the magnet to fit your specific needs and applications.
Made in China and certified with ISO9001, our NdFeB Magnet guarantees quality and reliability. With a minimum order quantity of 1000PCS, we are able to provide competitive pricing for our customers. Our packaging options include By Sea Pallet, By Air Carton, and By Express Packaging for maximum convenience.
With a delivery time of 21 days and payment terms of L/C or T/T, we strive to provide efficient and flexible service to our clients. Our supply ability of 1 000K PCS per month ensures that we can meet the demands of our customers.
The NdFeB Magnet is designed to work in a wide range of temperatures, from 80 to 230 degrees Celsius. With a tolerance of +/- 0.05 mm, our magnet is precise and reliable. It is widely used in various industries, such as traction motors, automotive EPS motors, and air conditioners.
Our NdFeB Magnet is available in a range of grades, from N35 to N52, allowing you to choose the strength that best suits your needs. It has a maximum working temperature of 230 degrees Celsius, making it suitable for a variety of applications.
Choose JN for your NdFeB Magnet needs and experience our exceptional customized service and high-quality products. Contact us now for more information and a quote!
| Magnetic Properties | ||||||||||
| Grade | Remanence | Intrinsic Coercivity | Max Magnetic Energy Product | Temperature Coefficient | Max Working Temperture | Density | ||||
| Br | Hcj | (BH)max | α Br | β Hcj | Tw | ρ | ||||
| T | kGs | kA/m | kOe | KJ/m3 | MGOe | %/℃ | %/℃ | ℃ | g/cm3 | |
| N55 | ≥1.45 | ≥14.5 | ≥955 | ≥12 | 406-437 | 51-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N54 | ≥1.44 | ≥14.4 | ≥955 | ≥12 | 398-437 | 50-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N52 | 1.42-1.44 | 14.2-14.4 | ≥955 | ≥12 | 390-422 | 49-53 | -0.12 | -0.8 | 80 | ≥7.5 |
| N50 | 1.4-1.42 | 14-14.2 | ≥955 | ≥12 | 374-406 | 47-51 | -0.12 | -0.8 | 80 | ≥7.5 |
| N48 | 1.37-1.4 | 13.7-14 | ≥955 | ≥12 | 366-390 | 46-49 | -0.12 | -0.8 | 80 | ≥7.5 |
| N45 | 1.32-1.37 | 13.2-13.7 | ≥955 | ≥12 | 342-366 | 43-46 | -0.12 | -0.8 | 80 | ≥7.5 |
| 54M | ≥1.44 | ≥14.4 | ≥1114 | ≥14 | 398-422 | 50-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 52M | 1.42-1.44 | 14.2-14.4 | ≥1114 | ≥14 | 390-422 | 49-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 50M | 1.4-1.42 | 14-14.2 | ≥1114 | ≥14 | 374-406 | 47-51 | -0.12 | -0.8 | 100 | ≥7.5 |
| 48M | 1.37-1.4 | 13.7-14 | ≥1114 | ≥14 | 366-390 | 46-49 | -0.12 | -0.8 | 100 | ≥7.5 |
| 45M | 1.32-1.37 | 13.2-13.7 | ≥1114 | ≥14 | 342-366 | 43-46 | -0.12 | -0.8 | 100 | ≥7.5 |
| 42M | 1.28-1.32 | 12.8-13.2 | ≥1114 | ≥14 | 318-342 | 40-43 | -0.12 | -0.8 | 100 | ≥7.5 |
| 54H | ≥1.44 | ≥14.4 | ≥1353 | ≥17 | 398-422 | 50-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52H | 1.42-1.44 | 14.2-14.4 | ≥1353 | ≥17 | 390-422 | 49-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 50H | 1.4-1.42 | 14-14.2 | ≥1353 | ≥17 | 374-406 | 47-51 | -0.12 | -0.7 | 120 | ≥7.5 |
| 48H | 1.37-1.4 | 13.7-14 | ≥1353 | ≥17 | 366-390 | 46-49 | -0.12 | -0.7 | 120 | ≥7.5 |
| 45H | 1.32-1.37 | 13.2-13.7 | ≥1353 | ≥17 | 342-366 | 43-46 | -0.12 | -0.7 | 120 | ≥7.5 |
| 42H | 1.28-1.32 | 12.8-13.2 | ≥1353 | ≥17 | 318-342 | 40-43 | -0.12 | -0.7 | 120 | ≥7.5 |
| 40H | 1.26-1.28 | 12.6-12.8 | ≥1353 | ≥17 | 302-326 | 38-41 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52SH | 1.42-1.44 | 14.2-14.4 | ≥1592 | ≥20 | 390-422 | 49-53 | -0.12 | -0.6 | 150 | ≥7.5 |
| 50SH | 1.4-1.42 | 14-14.2 | ≥1592 | ≥20 | 374-406 | 47-51 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48SH | 1.37-1.4 | 13.7-14 | ≥1592 | ≥20 | 366-390 | 46-49 | -0.12 | -0.6 | 150 | ≥7.5 |
| 45SH | 1.32-1.37 | 13.2-13.7 | ≥1592 | ≥20 | 342-366 | 43-46 | -0.12 | -0.6 | 150 | ≥7.5 |
| 42SH | 1.28-1.32 | 12.8-13.2 | ≥1592 | ≥20 | 318-342 | 40-43 | -0.12 | -0.6 | 150 | ≥7.5 |
| 40SH | 1.26-1.28 | 12.6-12.8 | ≥1592 | ≥20 | 302-326 | 38-41 | -0.12 | -0.6 | 150 | ≥7.5 |
| 38SH | 1.22-1.26 | 12.2-12.6 | ≥1592 | ≥20 | 287-310 | 36-39 | -0.12 | -0.6 | 150 | ≥7.5 |
| 35SH | 1.17-1.22 | 11.7-12.2 | ≥1592 | ≥20 | 263-287 | 33-36 | -0.12 | -0.6 | 150 | ≥7.5 |
| 33SH | 1.13-1.17 | 11.3-11.7 | ≥1592 | ≥20 | 247-271 | 31-34 | -0.12 | -0.6 | 150 | ≥7.5 |
| 30SH | 1.08-1.13 | 10.8-11.3 | ≥1592 | ≥20 | 223-254 | 28-32 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48UH | 1.36-1.4 | 13.6-14 | ≥1990 | ≥25 | 366-390 | 46-49 | -0.12 | -0.6 | 180 | ≥7.5 |
| 45UH | 1.32-1.37 | 13.2-13.7 | ≥1990 | ≥25 | 342-366 | 43-46 | -0.12 | -0.6 | 180 | ≥7.5 |
| 42UH | 1.28-1.32 | 12.8-13.2 | ≥1990 | ≥25 | 318-342 | 40-43 | -0.12 | -0.6 | 180 | ≥7.5 |
| 40UH | 1.26-1.28 | 12.6-12.8 | ≥1990 | ≥25 | 302-326 | 38-41 | -0.12 | -0.6 | 180 | ≥7.5 |
| 38UH | 1.22-1.26 | 12.2-12.6 | ≥1990 | ≥25 | 287-310 | 36-39 | -0.12 | -0.6 | 180 | ≥7.5 |
| 35UH | 1.17-1.22 | 11.7-12.2 | ≥1990 | ≥25 | 263-287 | 33-36 | -0.12 | -0.6 | 180 | ≥7.5 |
| 33UH | 1.13-1.17 | 11.3-11.7 | ≥1990 | ≥25 | 247-271 | 31-34 | -0.12 | -0.6 | 180 | ≥7.5 |
| 30UH | 1.08-1.13 | 10.8-11.3 | ≥1990 | ≥25 | 223-255 | 28-32 | -0.12 | -0.51 | 180 | ≥7.5 |
| 28UH | 1.02-1.08 | 10.2-10.8 | ≥1990 | ≥25 | 207-231 | 26-29 | -0.12 | -0.51 | 180 | ≥7.5 |
| 42EH | 1.28-1.32 | 12.8-13.2 | ≥2388 | ≥30 | 318-342 | 40-43 | -0.12 | -0.5 | 200 | ≥7.5 |
| 40EH | 1.25-1.28 | 12.5-12.8 | ≥2388 | ≥30 | 302-326 | 38-41 | -0.12 | -0.5 | 200 | ≥7.5 |
| 38EH | 1.22-1.26 | 12.2-12.6 | ≥2388 | ≥30 | 287-310 | 36-39 | -0.12 | -0.5 | 200 | ≥7.5 |
| 35EH | 1.17-1.22 | 11.7-12.2 | ≥2388 | ≥30 | 263-287 | 33-36 | -0.12 | -0.5 | 200 | ≥7.5 |
| 33EH | 1.13-1.17 | 11.3-11.7 | ≥2388 | ≥30 | 247-271 | 31-34 | -0.12 | -0.5 | 200 | ≥7.5 |
| 30EH | 1.08-1.13 | 10.8-11.3 | ≥2388 | ≥30 | 223-255 | 28-32 | -0.12 | -0.51 | 200 | ≥7.5 |
| 28EH | 1.02-1.08 | 10.2-10.8 | ≥2388 | ≥30 | 207-231 | 26-29 | -0.12 | -0.51 | 200 | ≥7.5 |
| 40AH | 1.25-1.28 | 12.5-12.8 | ≥2786 | ≥35 | 302-326 | 38-41 | -0.12 | -0.51 | 220 | ≥7.5 |
| 38AH | 1.22-1.26 | 12.2-12.6 | ≥2786 | ≥35 | 287-310 | 36-39 | -0.12 | -0.51 | 220 | ≥7.5 |
| 35AH | 1.17-1.22 | 11.7-12.2 | ≥2786 | ≥35 | 263-287 | 33-36 | -0.12 | -0.51 | 220 | ≥7.5 |
| 33AH | 1.13-1.17 | 11.3-11.7 | ≥2786 | ≥35 | 247-271 | 31-34 | -0.12 | -0.51 | 220 | ≥7.5 |
| 30AH | 1.08-1.13 | 10.8-11.3 | ≥2786 | ≥35 | 223-255 | 28-32 | -0.12 | -0.51 | 220 | ≥7.5 |
| 28AH | 1.02-1.08 | 10.2-10.8 | ≥2786 | ≥35 | 199-231 | 25-29 | -0.12 | -0.51 | 220 | ≥7.5 |
|
|
