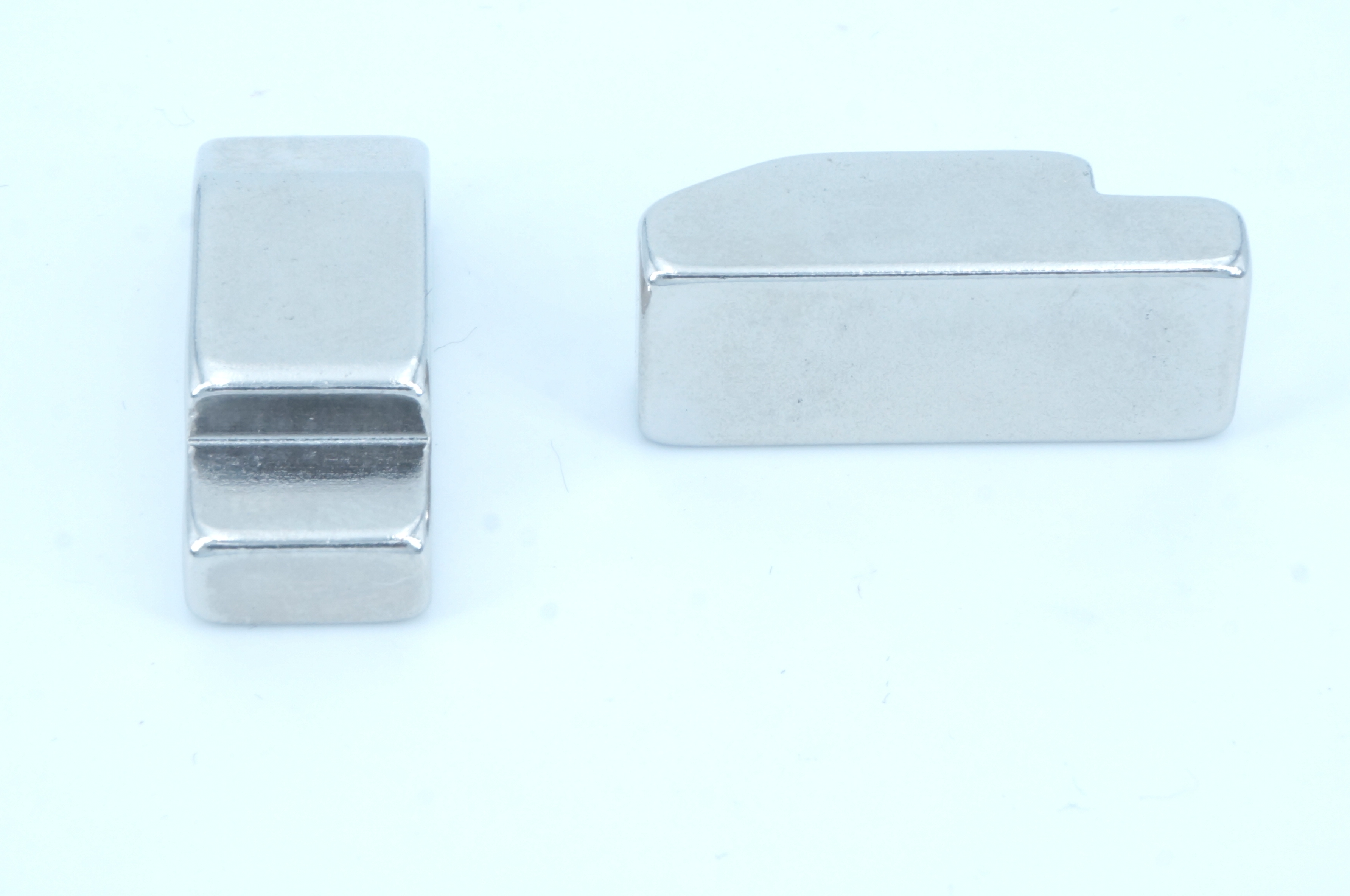

Industrial Super Strong Magnet with Working Temp 80-230 Centigrade and Custom Options

Ask Lasest Price
Brand Name :	JN
Model Number :	JN-ND-10
Certification :	ISO9001
Price :	Negotiable
Delivery Time :	21 Days
Payment Terms :	L/C,T/T
Supply Ability :	1 000K PCS/Month

Add to Cart

Product Details
Company Profile

Industrial Super Strong Magnet with Working Temp 80-230 Centigrade and Custom Options

Product Description:

NdFeB magnets have a very tight tolerance level, with a standard tolerance of +/- 0.05 mm. This means that the dimensions of the magnet will be very precise and consistent, ensuring its proper fit and function in any application.

Key Features:

Powerful Magnet: NdFeB magnets are known for their exceptional strength and magnetic properties, making them the most powerful type of magnet available.
High Energy Density: Due to the combination of neodymium, iron, and boron, NdFeB magnets have a high energy density, meaning they can store a large amount of magnetic energy.
Strong Magnetic Material: NdFeB magnets have a high coercivity, which makes them very difficult to demagnetize, ensuring their long-lasting magnetic strength.
Corrosion Resistance: NdFeB magnets are coated with a protective layer to prevent corrosion and ensure their durability in various environments.

NdFeB Magnet is the ultimate solution for high-performance magnets. With its powerful magnetic strength, high energy density, and strong magnetic properties, it is the preferred choice for a wide range of applications in industries such as electronics, automotive, and medical. With customization options and precise tolerance levels, NdFeB magnets offer a reliable and efficient solution for any magnetic needs.

Technical Parameters:

NdFeB Permanent Magnet	Neodymium Rare Earth Magnet
Working Temperature	80-230 Centigrade
Application	Traction Motor, Automotive EPS Motor, Air Conditioner
Process	Sintering
Grade Available	N35-N52
Coating	Nickel, Epoxy, Zn, Ni
Raw Material	NdFeB Rare Earth Materials
Size	Custom
Max Working Temperature	230ºC
Tolerance	+/- 0.05 mm
Type of Magnet	NdFeB Magnets

Application

NdFeB Magnet is used in many different applications, including:

Electric motors and generators: NdFeB Magnet is used in the rotors of electric motors and generators to convert electrical energy into mechanical energy. Its high magnetic energy product and high coercivity make it ideal for these applications.
Computer hard drives: NdFeB Magnet is used in computer hard drives to store data. Its high resistance to demagnetization ensures that the data is not lost even when the computer is turned off.
Magnetic separators: NdFeB Magnet is used in magnetic separators to separate ferrous materials from non-ferrous materials. Its strong magnetic properties make it effective in removing unwanted metals from different materials.
Sensors: NdFeB Magnet is used in sensors to detect magnetic fields. Its high sensitivity and strong magnetic properties make it ideal for this application.
Medical equipment: NdFeB Magnet is used in medical equipment such as MRI machines and magnetic resonance imaging. Its high temperature resistance makes it suitable for use in medical applications.
Speakers and headphones: NdFeB Magnet is used in speakers and headphones to convert electrical signals into sound. Its strong magnetic properties help in producing high-quality sound.

Scene

Imagine a manufacturing plant producing electric motors for cars. The engineers are using NdFeB Magnets to create the rotors of the motors. They carefully place the magnets in a specific order to ensure maximum efficiency and power. The magnets are then coated with nickel epoxy to protect them from corrosion. Once the motors are assembled, they are put through a series of tests to ensure they meet the high-quality standards set by the company. The motors are then shipped to the car manufacturing plant, where they are installed in the cars. The use of NdFeB Magnets in the motors ensures that the cars have a powerful and efficient engine, providing a smoother and more reliable driving experience for the customers.

Conclusion

NdFeB Magnet, also known as Neodymium Permanent Magnet, is a powerful permanent magnet that has a wide range of applications due to its strong magnetic properties. Its high magnetic energy product, high coercivity, and high temperature resistance make it ideal for use in various industries. With the JN brand, customers can be assured of high-quality NdFeB Magnets that are made from top-quality raw materials and manufactured with precision. Choose JN-ND-10 for your next project and experience the power of NdFeB Magnet.

Magnetic Properties
Grade	Remanence		Intrinsic Coercivity		Max Magnetic Energy Product		Temperature Coefficient		Max Working Temperture	Density
	Br		Hcj		(BH)max		α Br	β Hcj	Tw	ρ
	T	kGs	kA/m	kOe	KJ/m³	MGOe	%/℃	%/℃	℃	g/cm³
N55	≥1.45	≥14.5	≥955	≥12	406-437	51-55	-0.12	-0.8	80	≥7.5
N54	≥1.44	≥14.4	≥955	≥12	398-437	50-55	-0.12	-0.8	80	≥7.5
N52	1.42-1.44	14.2-14.4	≥955	≥12	390-422	49-53	-0.12	-0.8	80	≥7.5
N50	1.4-1.42	14-14.2	≥955	≥12	374-406	47-51	-0.12	-0.8	80	≥7.5
N48	1.37-1.4	13.7-14	≥955	≥12	366-390	46-49	-0.12	-0.8	80	≥7.5
N45	1.32-1.37	13.2-13.7	≥955	≥12	342-366	43-46	-0.12	-0.8	80	≥7.5
54M	≥1.44	≥14.4	≥1114	≥14	398-422	50-53	-0.12	-0.8	100	≥7.5
52M	1.42-1.44	14.2-14.4	≥1114	≥14	390-422	49-53	-0.12	-0.8	100	≥7.5
50M	1.4-1.42	14-14.2	≥1114	≥14	374-406	47-51	-0.12	-0.8	100	≥7.5
48M	1.37-1.4	13.7-14	≥1114	≥14	366-390	46-49	-0.12	-0.8	100	≥7.5
45M	1.32-1.37	13.2-13.7	≥1114	≥14	342-366	43-46	-0.12	-0.8	100	≥7.5
42M	1.28-1.32	12.8-13.2	≥1114	≥14	318-342	40-43	-0.12	-0.8	100	≥7.5
54H	≥1.44	≥14.4	≥1353	≥17	398-422	50-53	-0.12	-0.7	120	≥7.5
52H	1.42-1.44	14.2-14.4	≥1353	≥17	390-422	49-53	-0.12	-0.7	120	≥7.5
50H	1.4-1.42	14-14.2	≥1353	≥17	374-406	47-51	-0.12	-0.7	120	≥7.5
48H	1.37-1.4	13.7-14	≥1353	≥17	366-390	46-49	-0.12	-0.7	120	≥7.5
45H	1.32-1.37	13.2-13.7	≥1353	≥17	342-366	43-46	-0.12	-0.7	120	≥7.5
42H	1.28-1.32	12.8-13.2	≥1353	≥17	318-342	40-43	-0.12	-0.7	120	≥7.5
40H	1.26-1.28	12.6-12.8	≥1353	≥17	302-326	38-41	-0.12	-0.7	120	≥7.5
52SH	1.42-1.44	14.2-14.4	≥1592	≥20	390-422	49-53	-0.12	-0.6	150	≥7.5
50SH	1.4-1.42	14-14.2	≥1592	≥20	374-406	47-51	-0.12	-0.6	150	≥7.5
48SH	1.37-1.4	13.7-14	≥1592	≥20	366-390	46-49	-0.12	-0.6	150	≥7.5
45SH	1.32-1.37	13.2-13.7	≥1592	≥20	342-366	43-46	-0.12	-0.6	150	≥7.5
42SH	1.28-1.32	12.8-13.2	≥1592	≥20	318-342	40-43	-0.12	-0.6	150	≥7.5
40SH	1.26-1.28	12.6-12.8	≥1592	≥20	302-326	38-41	-0.12	-0.6	150	≥7.5
38SH	1.22-1.26	12.2-12.6	≥1592	≥20	287-310	36-39	-0.12	-0.6	150	≥7.5
35SH	1.17-1.22	11.7-12.2	≥1592	≥20	263-287	33-36	-0.12	-0.6	150	≥7.5
33SH	1.13-1.17	11.3-11.7	≥1592	≥20	247-271	31-34	-0.12	-0.6	150	≥7.5
30SH	1.08-1.13	10.8-11.3	≥1592	≥20	223-254	28-32	-0.12	-0.6	150	≥7.5
48UH	1.36-1.4	13.6-14	≥1990	≥25	366-390	46-49	-0.12	-0.6	180	≥7.5
45UH	1.32-1.37	13.2-13.7	≥1990	≥25	342-366	43-46	-0.12	-0.6	180	≥7.5
42UH	1.28-1.32	12.8-13.2	≥1990	≥25	318-342	40-43	-0.12	-0.6	180	≥7.5
40UH	1.26-1.28	12.6-12.8	≥1990	≥25	302-326	38-41	-0.12	-0.6	180	≥7.5
38UH	1.22-1.26	12.2-12.6	≥1990	≥25	287-310	36-39	-0.12	-0.6	180	≥7.5
35UH	1.17-1.22	11.7-12.2	≥1990	≥25	263-287	33-36	-0.12	-0.6	180	≥7.5
33UH	1.13-1.17	11.3-11.7	≥1990	≥25	247-271	31-34	-0.12	-0.6	180	≥7.5
30UH	1.08-1.13	10.8-11.3	≥1990	≥25	223-255	28-32	-0.12	-0.51	180	≥7.5
28UH	1.02-1.08	10.2-10.8	≥1990	≥25	207-231	26-29	-0.12	-0.51	180	≥7.5
42EH	1.28-1.32	12.8-13.2	≥2388	≥30	318-342	40-43	-0.12	-0.5	200	≥7.5
40EH	1.25-1.28	12.5-12.8	≥2388	≥30	302-326	38-41	-0.12	-0.5	200	≥7.5
38EH	1.22-1.26	12.2-12.6	≥2388	≥30	287-310	36-39	-0.12	-0.5	200	≥7.5
35EH	1.17-1.22	11.7-12.2	≥2388	≥30	263-287	33-36	-0.12	-0.5	200	≥7.5
33EH	1.13-1.17	11.3-11.7	≥2388	≥30	247-271	31-34	-0.12	-0.5	200	≥7.5
30EH	1.08-1.13	10.8-11.3	≥2388	≥30	223-255	28-32	-0.12	-0.51	200	≥7.5
28EH	1.02-1.08	10.2-10.8	≥2388	≥30	207-231	26-29	-0.12	-0.51	200	≥7.5
40AH	1.25-1.28	12.5-12.8	≥2786	≥35	302-326	38-41	-0.12	-0.51	220	≥7.5
38AH	1.22-1.26	12.2-12.6	≥2786	≥35	287-310	36-39	-0.12	-0.51	220	≥7.5
35AH	1.17-1.22	11.7-12.2	≥2786	≥35	263-287	33-36	-0.12	-0.51	220	≥7.5
33AH	1.13-1.17	11.3-11.7	≥2786	≥35	247-271	31-34	-0.12	-0.51	220	≥7.5
30AH	1.08-1.13	10.8-11.3	≥2786	≥35	223-255	28-32	-0.12	-0.51	220	≥7.5
28AH	1.02-1.08	10.2-10.8	≥2786	≥35	199-231	25-29	-0.12	-0.51	220	≥7.5
