Tempreture Resistant NdFeB Magnet Magnetic Coupling Strong Magnet N35 - N52

Ask Lasest Price
Brand Name :	JN
Model Number :	112LZ
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1 000K PCS/Month
Delivery Time :	15~18 Days

Add to Cart

Product Details
Company Profile

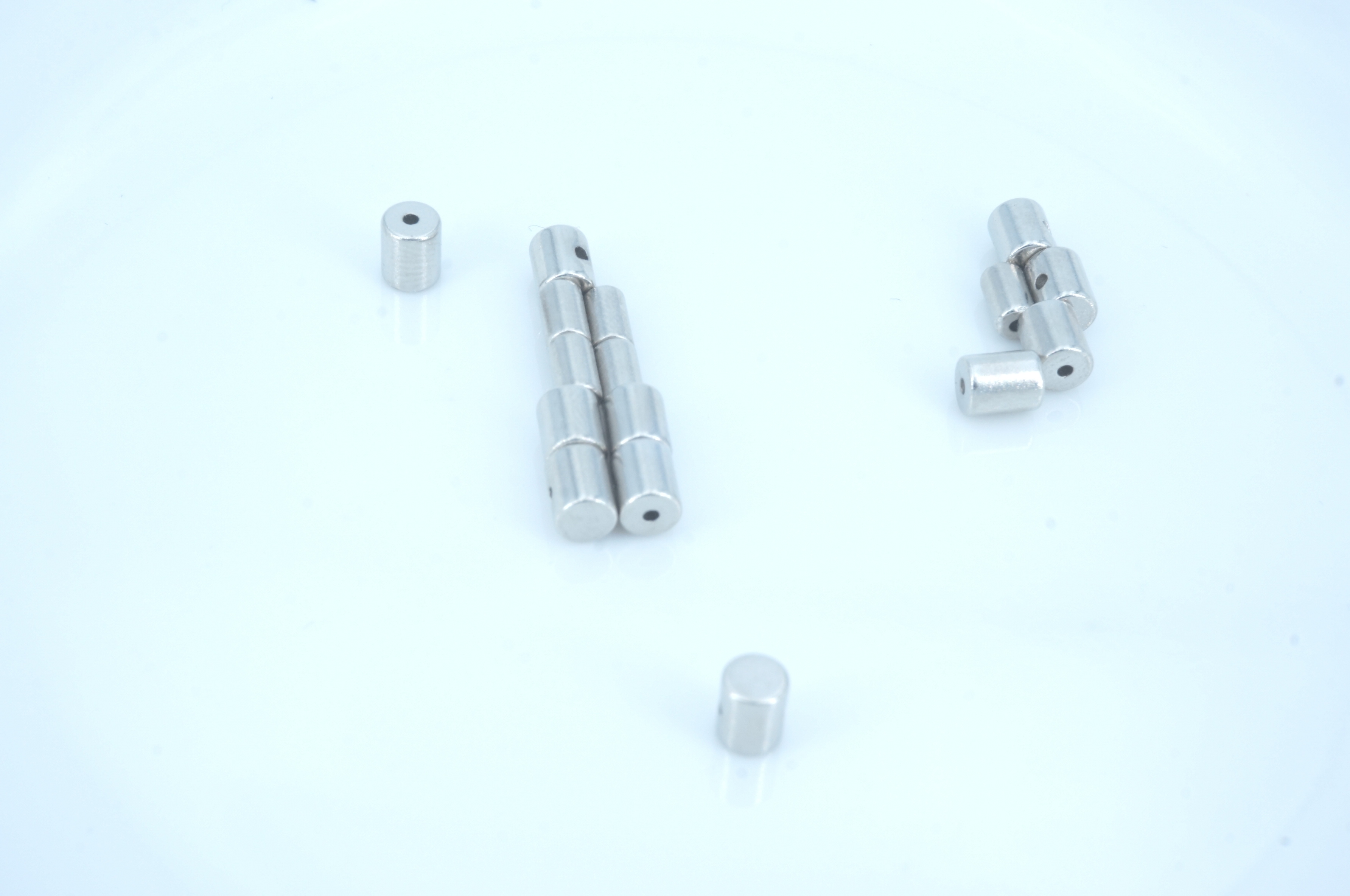

Tempreture Resistant NdFeB Magnet Magnetic Coupling Strong Magnet N35 - N52

NdFeB rare earth magnet Coupling magnet Zn coated N35-N52

NdFeB rare earth magnet Coupling magnet strong magnet high-tempreture resistant Zn coated N35-N52

Our NdFeB magnets are used in Couplings because our NdFeB magnets have the following advantages:

1. The coating is very smooth, the resistance is small, wear-resistant and high-temperature resistant;

2. The remanence is large, the strength is high, the working temperature is high, and it is not easy to demagnetize;

3. This material is the most cost-effective material among all the magnet materials on the market.

Our annual production capacity is 3000 tons.
The company with China’s No.1 rare earth miner Chinalco has a strategic partnership, with a complete production chain and a sound quality assurance system.

Customized needs
To Order, please provide the following key requirements:
1. Performance requirements (such as Remanence Br, Intrinsic Coercivity Hcj, Working Temperture, etc.)
2. Shape and size (drawings are available)
3. Magnetizing direction (axial, radial, and other magnetizing angle)
4. Coating material process and thickness (such as Ni, Ni-cu-Ni, Zn (Cr3 +) , Tin, Epoxy, Ni-AG, Ni-au)
5. Tolerance requirements (please pay attention to cost-effective, to avoid excessive quality)
6.Testing requirements
7. Futures requirements
8.Packing and transportation requirements

The performance and maximum processing accuracy of the NdFeB rare earth magnet products provided by our company please refer to the following two tables:

Magnetic Properties

Magnetic Properties
Grade	Remanence		Magnetic Inductio		Intrinsic Coercivity		Max Magnetic Energy Product		Temperature Coefficient		Max Working Temperture	Density
	Br		Hcb		Hcj		(BH)max		α Br	β Hcj	Tw	ρ
	T	kGs	kA/m	kOe	kA/m	kOe	KJ/m³	MGOe	%/℃	%/℃	℃	g/cm³
N55	≥1.45	≥14.5	836	10.5	≥955	≥12	406-437	51-55	-0.12	-0.8	80	≥7.5
N54	≥1.44	≥14.4	836	10.5	≥955	≥12	398-437	50-55	-0.12	-0.8	80	≥7.5
N52	1.42-1.44	14.2-14.4	836	10.5	≥955	≥12	390-422	49-53	-0.12	-0.8	80	≥7.5
N50	1.4-1.42	14-14.2	836	10.5	≥955	≥12	374-406	47-51	-0.12	-0.8	80	≥7.5
N48	1.37-1.4	13.7-14	915	11.5	≥955	≥12	366-390	46-49	-0.12	-0.8	80	≥7.5
N45	1.32-1.37	13.2-13.7	915	11.5	≥955	≥12	342-366	43-46	-0.12	-0.8	80	≥7.5
54M	≥1.44	≥14.4	1056	13.3	≥1114	≥14	398-422	50-53	-0.12	-0.8	100	≥7.5
52M	1.42-1.44	14.2-14.4	1056	13.3	≥1114	≥14	390-422	49-53	-0.12	-0.8	100	≥7.5
50M	1.4-1.42	14-14.2	1034	13.0	≥1114	≥14	374-406	47-51	-0.12	-0.8	100	≥7.5
48M	1.37-1.4	13.7-14	1019	12.8	≥1114	≥14	366-390	46-49	-0.12	-0.8	100	≥7.5
45M	1.32-1.37	13.2-13.7	1008	12.7	≥1114	≥14	342-366	43-46	-0.12	-0.8	100	≥7.5
42M	1.28-1.32	12.8-13.2	970	12.2	≥1114	≥14	318-342	40-43	-0.12	-0.8	100	≥7.5
54H	≥1.44	≥14.4	1056	13.3	≥1353	≥17	398-422	50-53	-0.12	-0.7	120	≥7.5
52H	1.42-1.44	14.2-14.4	1056	13.3	≥1353	≥17	390-422	49-53	-0.12	-0.7	120	≥7.5
50H	1.4-1.42	14-14.2	1034	13.0	≥1353	≥17	374-406	47-51	-0.12	-0.7	120	≥7.5
48H	1.37-1.4	13.7-14	1019	12.8	≥1353	≥17	366-390	46-49	-0.12	-0.7	120	≥7.5
45H	1.32-1.37	13.2-13.7	1008	12.7	≥1353	≥17	342-366	43-46	-0.12	-0.7	120	≥7.5
42H	1.28-1.32	12.8-13.2	970	12.2	≥1353	≥17	318-342	40-43	-0.12	-0.7	120	≥7.5
40H	1.26-1.28	12.6-12.8	948	11.9	≥1353	≥17	302-326	38-41	-0.12	-0.7	120	≥7.5
52SH	1.42-1.44	14.2-14.4	1056	13.3	≥1592	≥20	390-422	49-53	-0.12	-0.6	150	≥7.5
50SH	1.4-1.42	14-14.2	1034	13.0	≥1592	≥20	374-406	47-51	-0.12	-0.6	150	≥7.5
48SH	1.37-1.4	13.7-14	1019	12.8	≥1592	≥20	366-390	46-49	-0.12	-0.6	150	≥7.5
45SH	1.32-1.37	13.2-13.7	1008	12.7	≥1592	≥20	342-366	43-46	-0.12	-0.6	150	≥7.5
42SH	1.28-1.32	12.8-13.2	970	12.2	≥1592	≥20	318-342	40-43	-0.12	-0.6	150	≥7.5
40SH	1.26-1.28	12.6-12.8	948	11.9	≥1592	≥20	302-326	38-41	-0.12	-0.6	150	≥7.5
38SH	1.22-1.26	12.2-12.6	925	11.6	≥1592	≥20	287-310	36-39	-0.12	-0.6	150	≥7.5
35SH	1.17-1.22	11.7-12.2	887	11.1	≥1592	≥20	263-287	33-36	-0.12	-0.6	150	≥7.5
33SH	1.13-1.17	11.3-11.7	857	10.8	≥1592	≥20	247-271	31-34	-0.12	-0.6	150	≥7.5
30SH	1.08-1.13	10.8-11.3	819	10.3	≥1592	≥20	223-254	28-32	-0.12	-0.6	150	≥7.5
48UH	1.36-1.4	13.6-14	1029	12.9	≥1990	≥25	366-390	46-49	-0.12	-0.6	180	≥7.5
45UH	1.32-1.37	13.2-13.7	1008	12.7	≥1990	≥25	342-366	43-46	-0.12	-0.6	180	≥7.5
42UH	1.28-1.32	12.8-13.2	970	12.2	≥1990	≥25	318-342	40-43	-0.12	-0.6	180	≥7.5
40UH	1.26-1.28	12.6-12.8	948	11.9	≥1990	≥25	302-326	38-41	-0.12	-0.6	180	≥7.5
38UH	1.22-1.26	12.2-12.6	925	11.6	≥1990	≥25	287-310	36-39	-0.12	-0.6	180	≥7.5
35UH	1.17-1.22	11.7-12.2	887	11.1	≥1990	≥25	263-287	33-36	-0.12	-0.6	180	≥7.5
33UH	1.13-1.17	11.3-11.7	857	10.8	≥1990	≥25	247-271	31-34	-0.12	-0.6	180	≥7.5
30UH	1.08-1.13	10.8-11.3	819	10.3	≥1990	≥25	223-255	28-32	-0.12	-0.51	180	≥7.5
28UH	1.02-1.08	10.2-10.8	773	9.7	≥1990	≥25	207-231	26-29	-0.12	-0.51	180	≥7.5
42EH	1.28-1.32	12.8-13.2	970	12.2	≥2388	≥30	318-342	40-43	-0.12	-0.5	200	≥7.5
40EH	1.25-1.28	12.5-12.8	948	11.9	≥2388	≥30	302-326	38-41	-0.12	-0.5	200	≥7.5
38EH	1.22-1.26	12.2-12.6	925	11.6	≥2388	≥30	287-310	36-39	-0.12	-0.5	200	≥7.5
35EH	1.17-1.22	11.7-12.2	887	11.1	≥2388	≥30	263-287	33-36	-0.12	-0.5	200	≥7.5
33EH	1.13-1.17	11.3-11.7	857	10.8	≥2388	≥30	247-271	31-34	-0.12	-0.5	200	≥7.5
30EH	1.08-1.13	10.8-11.3	819	10.3	≥2388	≥30	223-255	28-32	-0.12	-0.51	200	≥7.5
28EH	1.02-1.08	10.2-10.8	773	9.7	≥2388	≥30	207-231	26-29	-0.12	-0.51	200	≥7.5
40AH	1.25-1.28	12.5-12.8	948	11.9	≥2786	≥35	302-326	38-41	-0.12	-0.51	220	≥7.5
38AH	1.22-1.26	12.2-12.6	925	11.6	≥2786	≥35	287-310	36-39	-0.12	-0.51	220	≥7.5
35AH	1.17-1.22	11.7-12.2	887	11.1	≥2786	≥35	263-287	33-36	-0.12	-0.51	220	≥7.5
33AH	1.13-1.17	11.3-11.7	857	10.8	≥2786	≥35	247-271	31-34	-0.12	-0.51	220	≥7.5
30AH	1.08-1.13	10.8-11.3	819	10.3	≥2786	≥35	223-255	28-32	-0.12	-0.51	220	≥7.5
28AH	1.02-1.08	10.2-10.8	773	9.7	≥2786	≥35	199-231	25-29	-0.12	-0.51	220	≥7.5
