Jiangsu Jiuneng Electromechanical Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | JN |
| Model Number : | JN-ND-6 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Delivery Time : | 21 Days |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 1 000K PCS/Month |

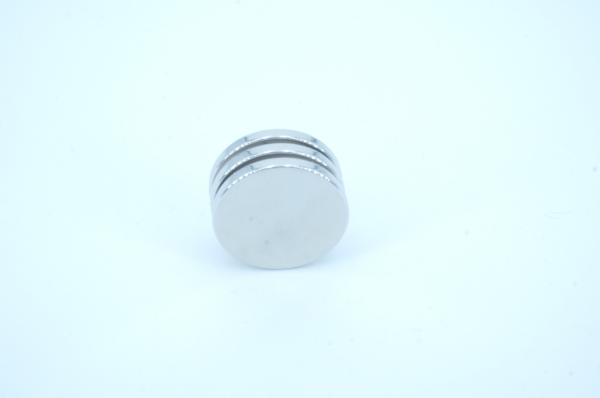

The NdFeB Magnet, also known as the Neodymium Iron Boron Magnet, is a powerful and super strong permanent magnet with high magnetic energy product and high coercive force. It is widely used in various industries due to its exceptional performance and properties.
The NdFeB Magnet has a working temperature range of 80-230 degrees Centigrade, making it suitable for a wide range of applications that require high temperature resistance. It can maintain its magnetic properties even at extremely high temperatures, making it a reliable choice for industrial use.
The size of NdFeB Magnets can be customized according to the specific requirements of the application. This allows for flexibility and versatility in design and usage, making it suitable for various industries and products.
The maximum working temperature of NdFeB Magnets is 230 degrees Celsius, which is significantly higher than other types of permanent magnets. This makes it ideal for applications that require high temperature resistance, such as traction motors, automotive EPS motors, and air conditioners.
NdFeB Magnets are available in a wide range of grades, from N35 to N52, with different magnetic properties and performance levels. This allows for customization and optimization to meet the specific needs of different applications.
The NdFeB Magnet is widely used in various industries, including automotive, electronics, medical, and renewable energy. It is commonly used in traction motors for electric vehicles, automotive EPS motors for power steering systems, and air conditioners for energy-efficient cooling.
In summary, the NdFeB Magnet is a powerful and super strong permanent magnet with high temperature resistance and customizable size. Its availability in various grades and wide range of applications make it an essential component in many industrial and commercial products.
| Magnetic Properties | ||||||||||
| Grade | Remanence | Intrinsic Coercivity | Max Magnetic Energy Product | Temperature Coefficient | Max Working Temperture | Density | ||||
| Br | Hcj | (BH)max | α Br | β Hcj | Tw | ρ | ||||
| T | kGs | kA/m | kOe | KJ/m3 | MGOe | %/℃ | %/℃ | ℃ | g/cm3 | |
| N55 | ≥1.45 | ≥14.5 | ≥955 | ≥12 | 406-437 | 51-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N54 | ≥1.44 | ≥14.4 | ≥955 | ≥12 | 398-437 | 50-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N52 | 1.42-1.44 | 14.2-14.4 | ≥955 | ≥12 | 390-422 | 49-53 | -0.12 | -0.8 | 80 | ≥7.5 |
| N50 | 1.4-1.42 | 14-14.2 | ≥955 | ≥12 | 374-406 | 47-51 | -0.12 | -0.8 | 80 | ≥7.5 |
| N48 | 1.37-1.4 | 13.7-14 | ≥955 | ≥12 | 366-390 | 46-49 | -0.12 | -0.8 | 80 | ≥7.5 |
| N45 | 1.32-1.37 | 13.2-13.7 | ≥955 | ≥12 | 342-366 | 43-46 | -0.12 | -0.8 | 80 | ≥7.5 |
| 54M | ≥1.44 | ≥14.4 | ≥1114 | ≥14 | 398-422 | 50-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 52M | 1.42-1.44 | 14.2-14.4 | ≥1114 | ≥14 | 390-422 | 49-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 50M | 1.4-1.42 | 14-14.2 | ≥1114 | ≥14 | 374-406 | 47-51 | -0.12 | -0.8 | 100 | ≥7.5 |
| 48M | 1.37-1.4 | 13.7-14 | ≥1114 | ≥14 | 366-390 | 46-49 | -0.12 | -0.8 | 100 | ≥7.5 |
| 45M | 1.32-1.37 | 13.2-13.7 | ≥1114 | ≥14 | 342-366 | 43-46 | -0.12 | -0.8 | 100 | ≥7.5 |
| 42M | 1.28-1.32 | 12.8-13.2 | ≥1114 | ≥14 | 318-342 | 40-43 | -0.12 | -0.8 | 100 | ≥7.5 |
| 54H | ≥1.44 | ≥14.4 | ≥1353 | ≥17 | 398-422 | 50-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52H | 1.42-1.44 | 14.2-14.4 | ≥1353 | ≥17 | 390-422 | 49-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 50H | 1.4-1.42 | 14-14.2 | ≥1353 | ≥17 | 374-406 | 47-51 | -0.12 | -0.7 | 120 | ≥7.5 |
| 48H | 1.37-1.4 | 13.7-14 | ≥1353 | ≥17 | 366-390 | 46-49 | -0.12 | -0.7 | 120 | ≥7.5 |
| 45H | 1.32-1.37 | 13.2-13.7 | ≥1353 | ≥17 | 342-366 | 43-46 | -0.12 | -0.7 | 120 | ≥7.5 |
| 42H | 1.28-1.32 | 12.8-13.2 | ≥1353 | ≥17 | 318-342 | 40-43 | -0.12 | -0.7 | 120 | ≥7.5 |
| 40H | 1.26-1.28 | 12.6-12.8 | ≥1353 | ≥17 | 302-326 | 38-41 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52SH | 1.42-1.44 | 14.2-14.4 | ≥1592 | ≥20 | 390-422 | 49-53 | -0.12 | -0.6 | 150 | ≥7.5 |
| 50SH | 1.4-1.42 | 14-14.2 | ≥1592 | ≥20 | 374-406 | 47-51 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48SH | 1.37-1.4 | 13.7-14 | ≥1592 | ≥20 | 366-390 | 46-49 | -0.12 | -0.6 | 150 | ≥7.5 |
| 45SH | 1.32-1.37 | 13.2-13.7 | ≥1592 | ≥20 | 342-366 | 43-46 | -0.12 | -0.6 | 150 | ≥7.5 |
| 42SH | 1.28-1.32 | 12.8-13.2 | ≥1592 | ≥20 | 318-342 | 40-43 | -0.12 | -0.6 | 150 | ≥7.5 |
| 40SH | 1.26-1.28 | 12.6-12.8 | ≥1592 | ≥20 | 302-326 | 38-41 | -0.12 | -0.6 | 150 | ≥7.5 |
| 38SH | 1.22-1.26 | 12.2-12.6 | ≥1592 | ≥20 | 287-310 | 36-39 | -0.12 | -0.6 | 150 | ≥7.5 |
| 35SH | 1.17-1.22 | 11.7-12.2 | ≥1592 | ≥20 | 263-287 | 33-36 | -0.12 | -0.6 | 150 | ≥7.5 |
| 33SH | 1.13-1.17 | 11.3-11.7 | ≥1592 | ≥20 | 247-271 | 31-34 | -0.12 | -0.6 | 150 | ≥7.5 |
| 30SH | 1.08-1.13 | 10.8-11.3 | ≥1592 | ≥20 | 223-254 | 28-32 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48UH | 1.36-1.4 | 13.6-14 | ≥1990 | ≥25 | 366-390 | 46-49 | -0.12 | -0.6 | 180 | ≥7.5 |
| 45UH | 1.32-1.37 | 13.2-13.7 | ≥1990 | ≥25 | 342-366 | 43-46 | -0.12 | -0.6 | 180 | ≥7.5 |
| 42UH | 1.28-1.32 | 12.8-13.2 | ≥1990 | ≥25 | 318-342 | 40-43 | -0.12 | -0.6 | 180 | ≥7.5 |
| 40UH | 1.26-1.28 | 12.6-12.8 | ≥1990 | ≥25 | 302-326 | 38-41 | -0.12 | -0.6 | 180 | ≥7.5 |
| 38UH | 1.22-1.26 | 12.2-12.6 | ≥1990 | ≥25 | 287-310 | 36-39 | -0.12 | -0.6 | 180 | ≥7.5 |
| 35UH | 1.17-1.22 | 11.7-12.2 | ≥1990 | ≥25 | 263-287 | 33-36 | -0.12 | -0.6 | 180 | ≥7.5 |
| 33UH | 1.13-1.17 | 11.3-11.7 | ≥1990 | ≥25 | 247-271 | 31-34 | -0.12 | -0.6 | 180 | ≥7.5 |
| 30UH | 1.08-1.13 | 10.8-11.3 | ≥1990 | ≥25 | 223-255 | 28-32 | -0.12 | -0.51 | 180 | ≥7.5 |
| 28UH | 1.02-1.08 | 10.2-10.8 | ≥1990 | ≥25 | 207-231 | 26-29 | -0.12 | -0.51 | 180 | ≥7.5 |
| 42EH | 1.28-1.32 | 12.8-13.2 | ≥2388 | ≥30 | 318-342 | 40-43 | -0.12 | -0.5 | 200 | ≥7.5 |
| 40EH | 1.25-1.28 | 12.5-12.8 | ≥2388 | ≥30 | 302-326 | 38-41 | -0.12 | -0.5 | 200 | ≥7.5 |
| 38EH | 1.22-1.26 | 12.2-12.6 | ≥2388 | ≥30 | 287-310 | 36-39 | -0.12 | -0.5 | 200 | ≥7.5 |
| 35EH | 1.17-1.22 | 11.7-12.2 | ≥2388 | ≥30 | 263-287 | 33-36 | -0.12 | -0.5 | 200 | ≥7.5 |
| 33EH | 1.13-1.17 | 11.3-11.7 | ≥2388 | ≥30 | 247-271 | 31-34 | -0.12 | -0.5 | 200 | ≥7.5 |
| 30EH | 1.08-1.13 | 10.8-11.3 | ≥2388 | ≥30 | 223-255 | 28-32 | -0.12 | -0.51 | 200 | ≥7.5 |
| 28EH | 1.02-1.08 | 10.2-10.8 | ≥2388 | ≥30 | 207-231 | 26-29 | -0.12 | -0.51 | 200 | ≥7.5 |
| 40AH | 1.25-1.28 | 12.5-12.8 | ≥2786 | ≥35 | 302-326 | 38-41 | -0.12 | -0.51 | 220 | ≥7.5 |
| 38AH | 1.22-1.26 | 12.2-12.6 | ≥2786 | ≥35 | 287-310 | 36-39 | -0.12 | -0.51 | 220 | ≥7.5 |
| 35AH | 1.17-1.22 | 11.7-12.2 | ≥2786 | ≥35 | 263-287 | 33-36 | -0.12 | -0.51 | 220 | ≥7.5 |
| 33AH | 1.13-1.17 | 11.3-11.7 | ≥2786 | ≥35 | 247-271 | 31-34 | -0.12 | -0.51 | 220 | ≥7.5 |
| 30AH | 1.08-1.13 | 10.8-11.3 | ≥2786 | ≥35 | 223-255 | 28-32 | -0.12 | -0.51 | 220 | ≥7.5 |
| 28AH | 1.02-1.08 | 10.2-10.8 | ≥2786 | ≥35 | 199-231 | 25-29 | -0.12 | -0.51 | 220 | ≥7.5 |
|
|
